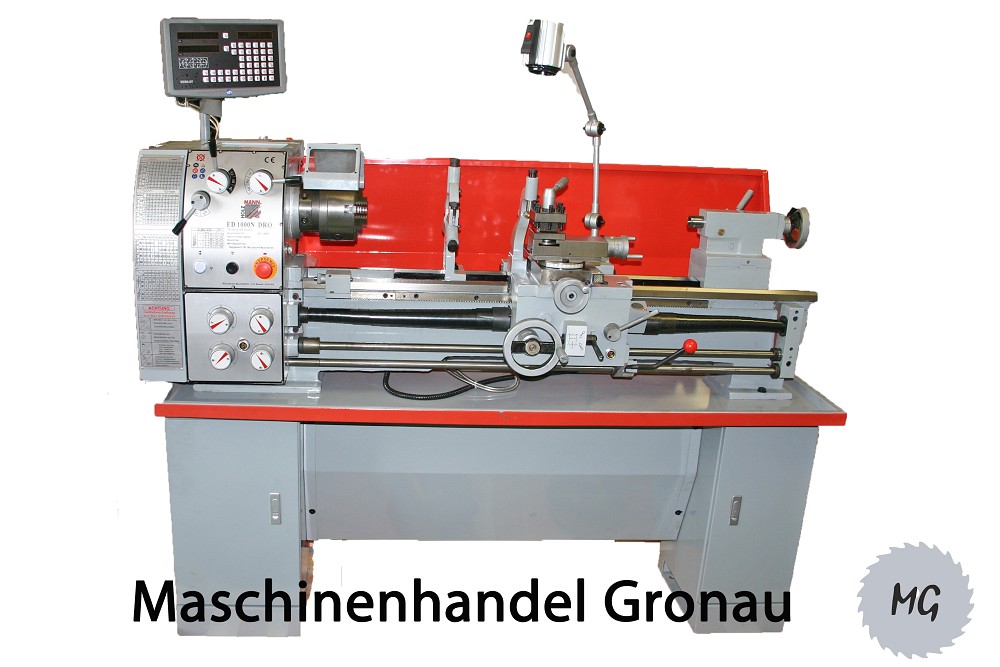

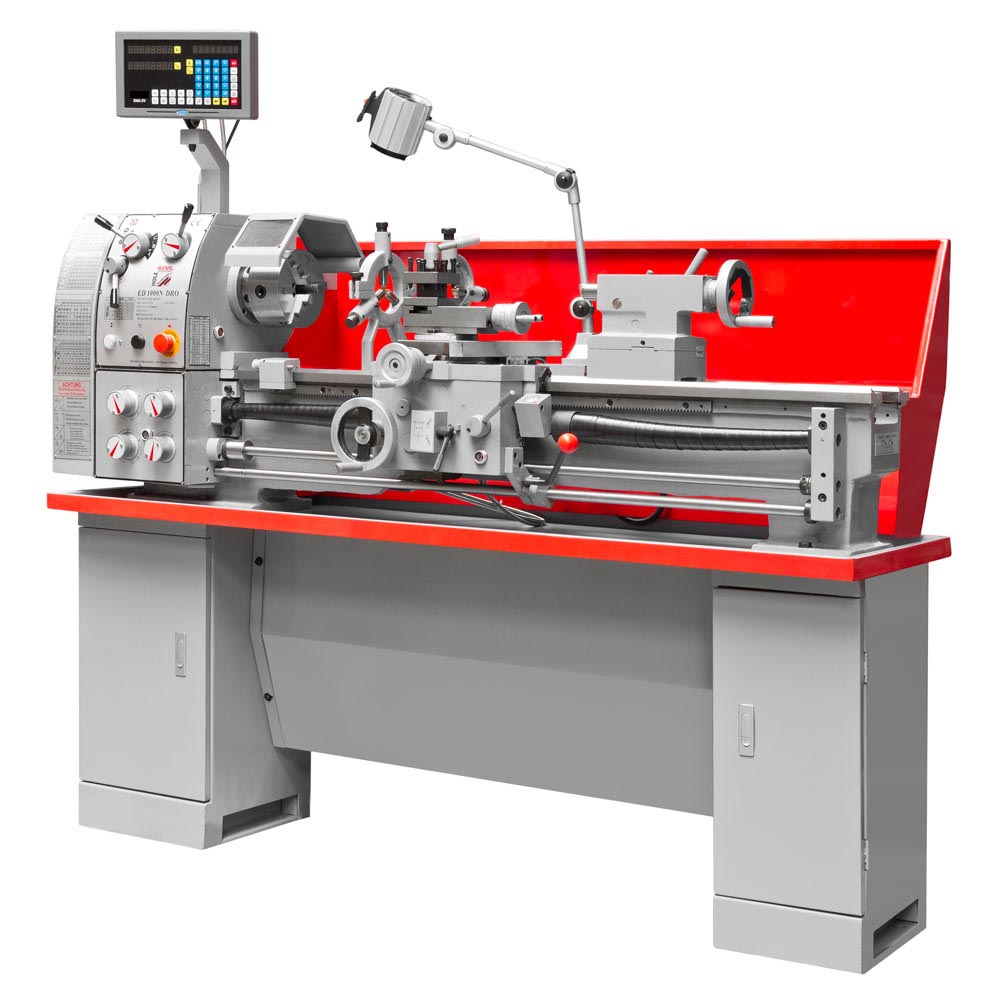

Holzmann metal tunring lathe ED 1000N DIG

distance between centers 1000mm
center height 165mm
spindle speeds 70-2000 rpm
max. swing (Ø) over bed 332mm
max. swing (Ø) over cross slide 198mm
max. swing in gap 450mm
machine bed height 260mm
machine bed width 181mm
spindle bore 38mm
spindle taper MT5
tailstock taper MT3
spindle nose mount D1 – 4, DIN 55029
range of longitudinal feeds 0,079 – 1,291 mm/r
range of cross feeds 0,017 – 0,276mm/r
range of metric threads 0,4 – 7mm
range of Inch threads 4 – 60tpi
leadscrew pitch 8g/zoll
cross slide travel 160mm
compound slide travel 80mm
motor power S1 (100%) / S6 1,1 kW / 1,5kW
voltage 400V
net weight ca. 530kg
gross weight ca. 620kg
packaging dimensions 750x1860x730mm - 390x600x350mm - 390x600x280mm

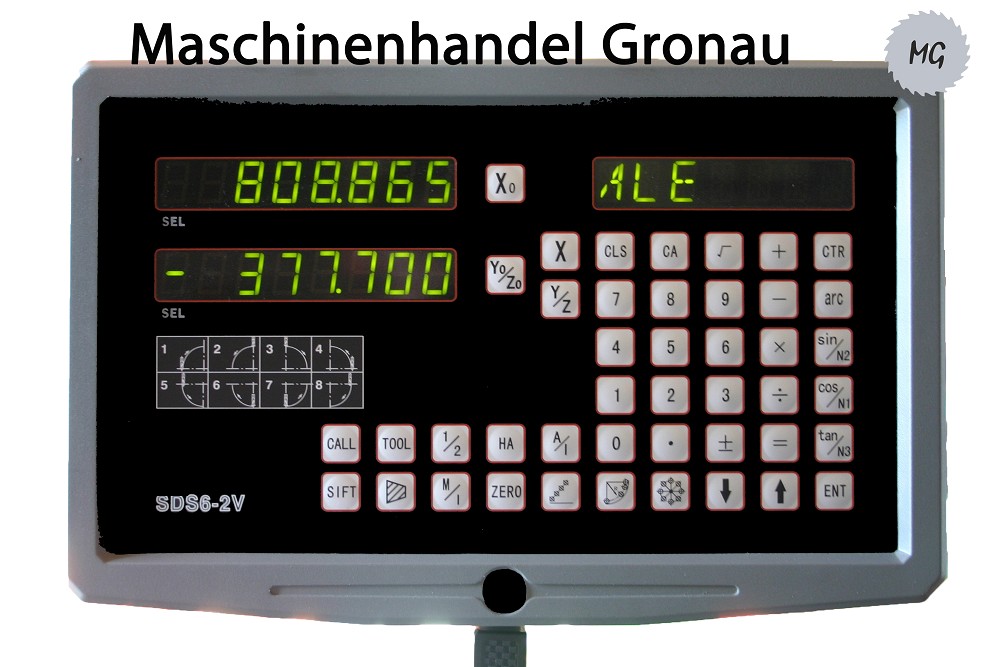

2 axis DRO

ideal for locksmithery, workshops and schools

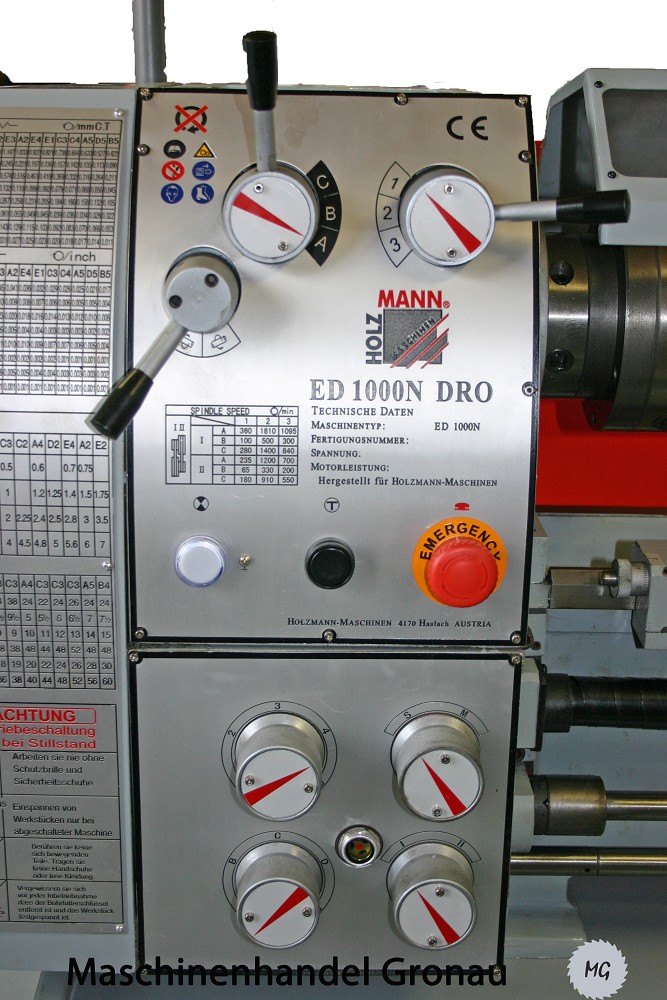

easy and quick change of rotation speed via gear shaft
induction-hardened and precision ground cast iron bed
removable bridge enables to machine large work pieces
hardened and ground main spindle ensures high true running accuracy
feeding gear and cogwheel are oil bath lubricated which ensures a long durability
easily detachable feeding rod and guide screw
all guides conveniently adjustable via V-ledges
4 way tool postenables to fix two different tools at once

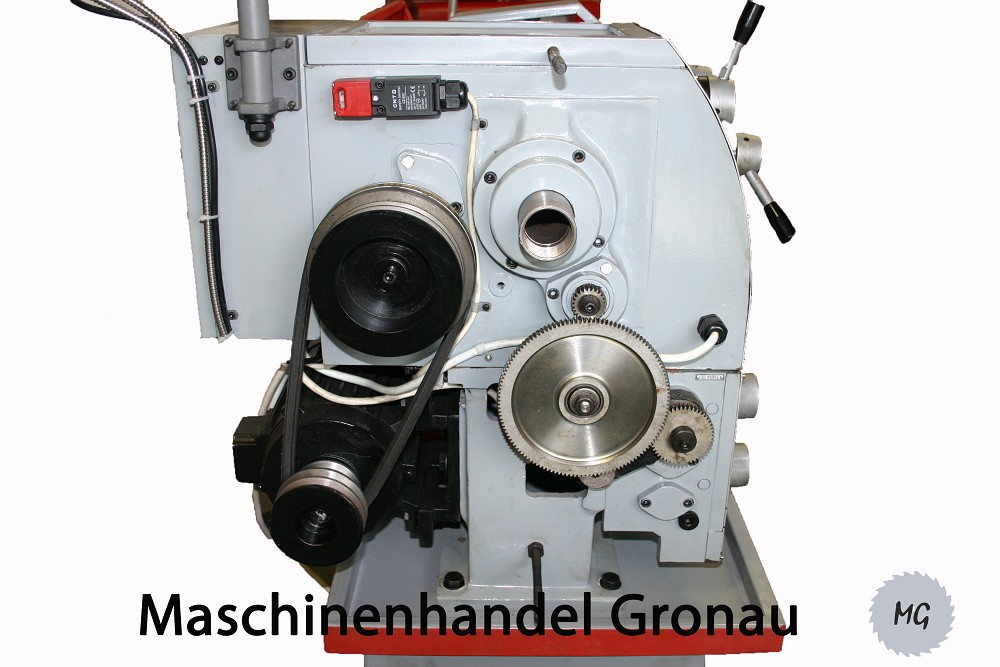

hardened and ground gear wheels ensure a smooth run
clutch, lamp and spindle cover included in delivery
CAMLOCK spindle shank D1-4, DIN 55029

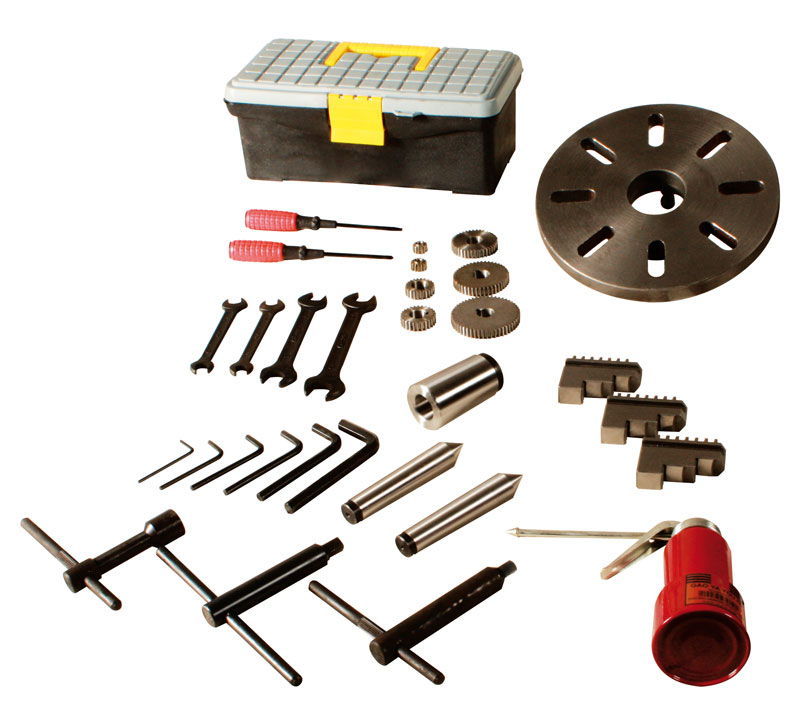

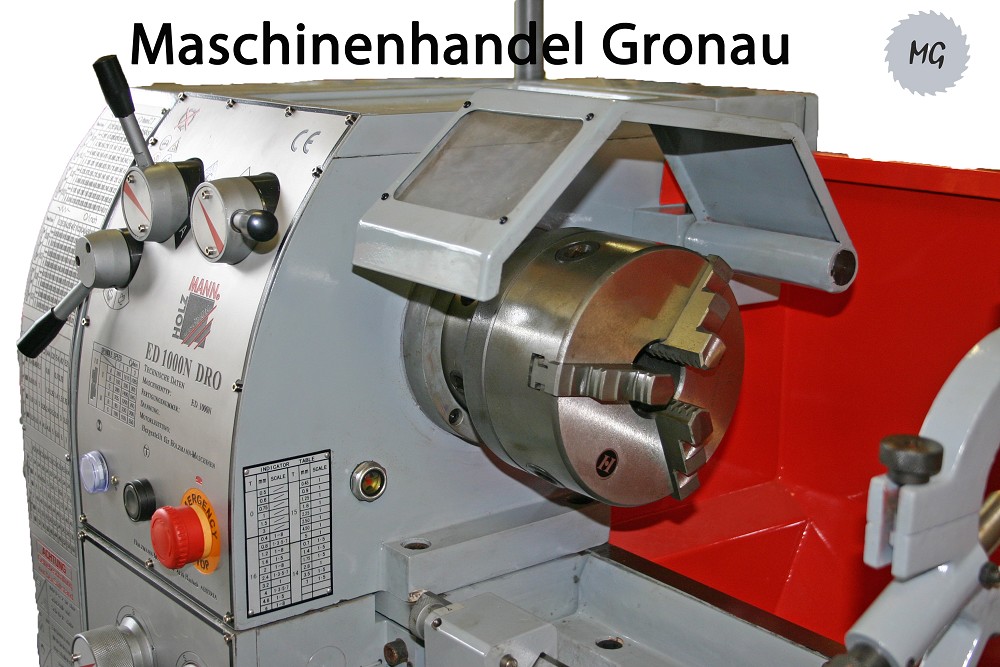

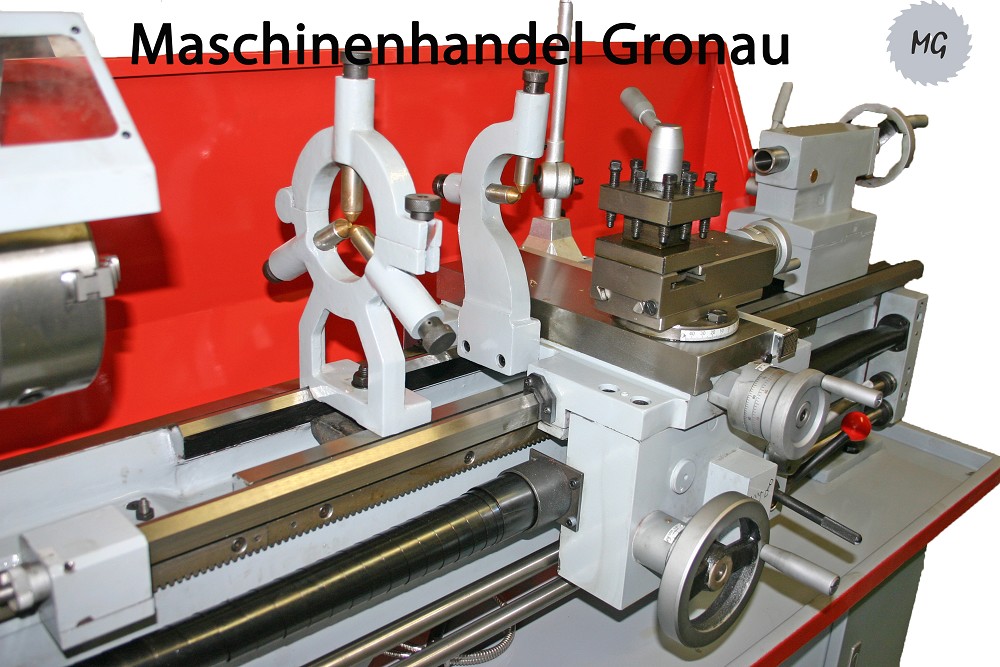

included in delivery: 3-jaw chuck Ø160mm, face plate, chuck guard, machine stand, splash guard, steady rest, follow rest, chip tray, 4 way tool post, change gears, 2x dead centres MT3, thread dial, key tools, reducer MT5/MT3, lamp
