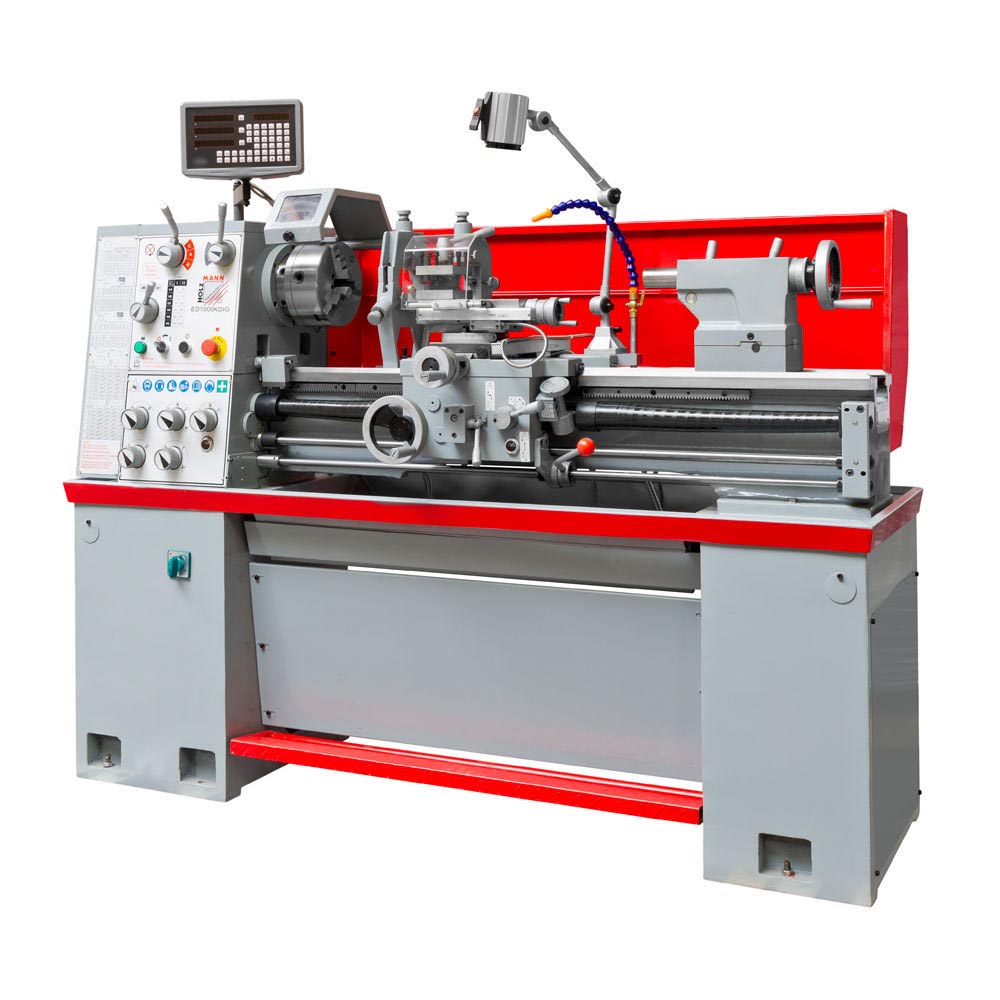

Product information "Holzmann metal turning lathe ED 1000K DIG"

motor data

motor power s1 in W 2000
motor power s6 in W 2400
voltage 400V

turning machines

range of inch threads 2-28
range of metric threads in mm/r 0,8-14
max. tool holder cross-section 20x20mm

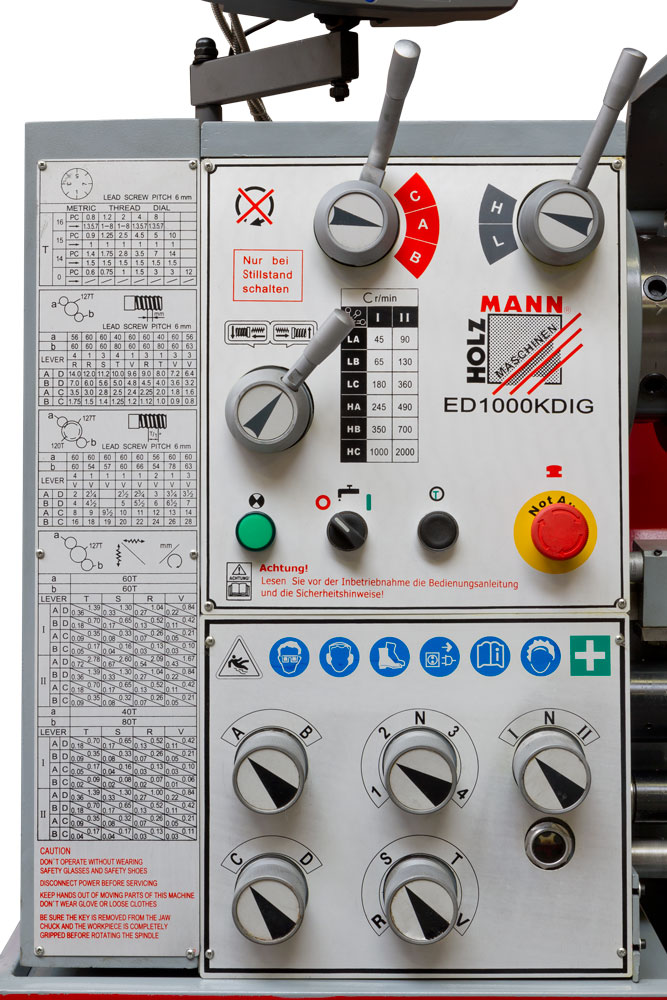

lathe spindle speed in min-1 (12) 45-2000
max. swing in gap in mm 505
max. swing over cross slide in mm 240
tailstock cone MK4
spindle nose mount MK6/MT6
spindle bore in mm 55
cross feed (64) 0,005-0,22 mm
longitudinal feed (64) 0,02-0,85 mm
tailstock sleeve travel 100
distance between centers in mm 1000
max. swing over bed in mm 400
center height in mm 200

weight

gross weight in kg 900
net weight in kg 850

State of the art leadscrew and feed rod turning lathe excelling with especially long lasting value over time and delighting versatility
ideal for use in sectors requiring versatility like maintenance and fabrication shops, tool rooms or for training
purposes in schools
exceptionally wide spindle bore (Ø 52mm) for processing large shaft diameters
electromagnetic foot brake ensures maximal working safety and cuts down nonproductive time dramatically
induction-hardened and precision ground prismatic bed way guides made of stabilized cast iron, assuring max. accuracy for a lifetime
removable bridge enables the machining of workpieces with diameters up to 505 mm
Precision cut gears and vibration inhibiting cast iron machine bed ensure high turning accuracy
Gears and spindles are hardened, ground and running in an oil bath
Dynamically balanced main spindle mounted in precision bearings, high spindle centricity (< 0,009mm)
Camlock D1-5 DIN 55029 spindle nose

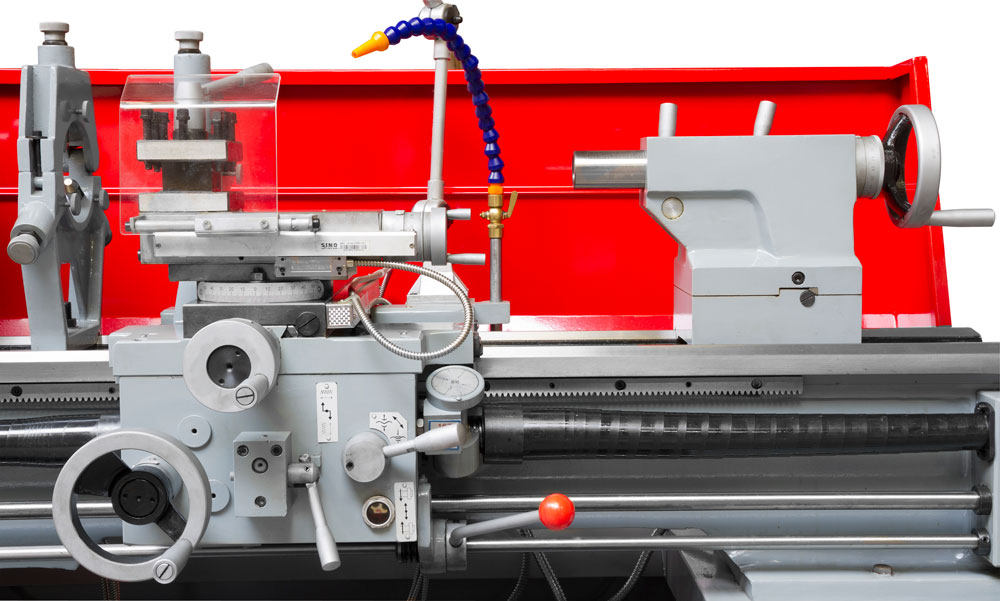

adjustable (+/- 5mm) tailstock for taper turning
All guides conveniently adjustable via V-ledges
2-step motor as standard

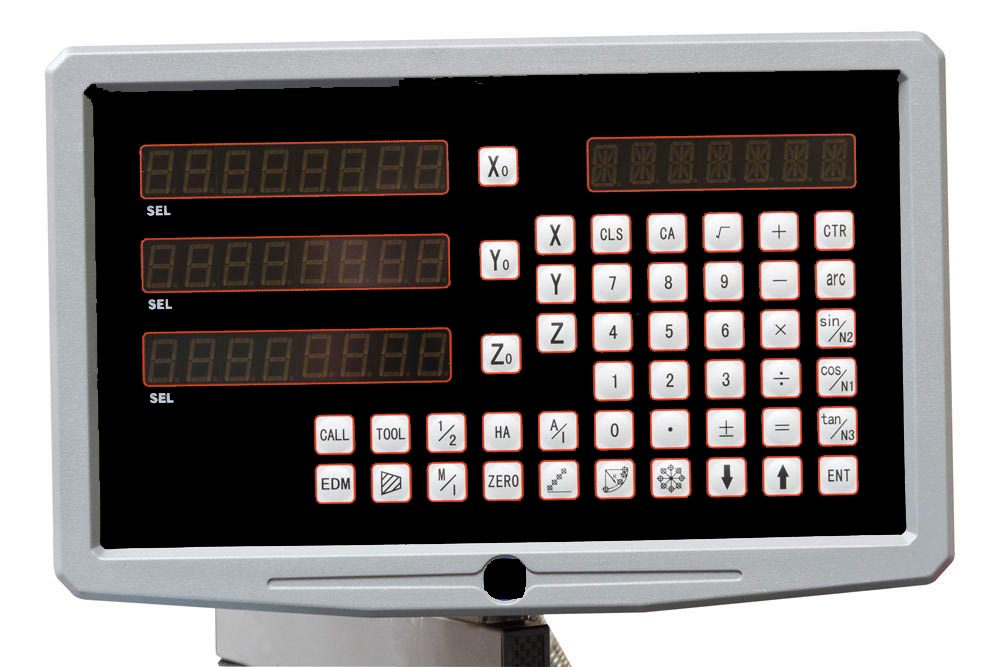

included in delivery: 3-axis DRO, 3-jaw chuck Ø 200mm with exchange jaws, 4-side tool holder, 4-jaw chuck Ø 200mm, face plate Ø 250mm, 2x dead centers, morse taper sleeve MT 6/4, steady rest, follow rest, halogen work lamp, splash guard, coolant device, grey cast stand, threading, change gears, tools
