€15,299.00 * €16,999.00 * (10% Saved)
Prices incl. VAT plus shipping costs
Delivery time 90 Workdays
- Order number: BF1000D_DRO
morse taper ISO 40spindle speeds vertical (8) 90-2000 rpmspindle speeds horizontal (12) 40-1300... more

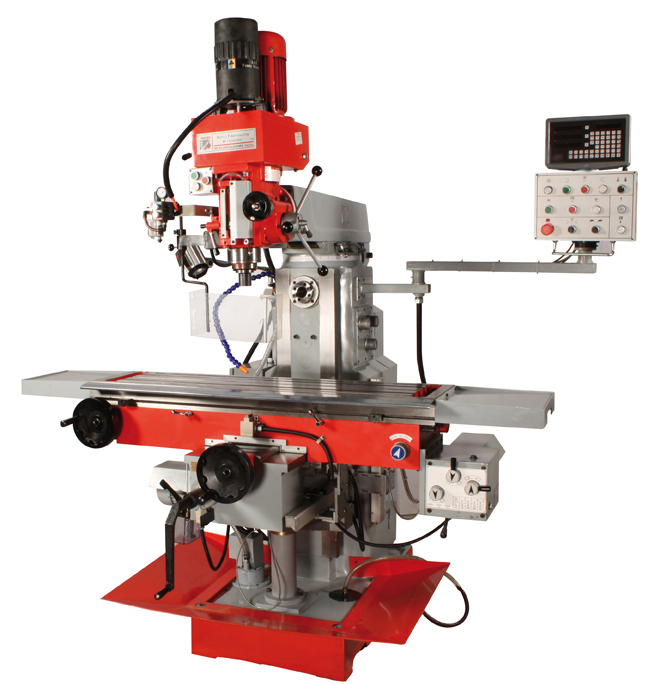

Product information "Holzmann milling machine BF 1000D DRO"
morse taper ISO 40spindle speeds vertical (8) 90-2000 rpmspindle speeds horizontal (12) 40-1300 rpmfeeding speed (3 steps) 0,08; 0,15; 0,25 rpmspindle stroke 120mmmax. distance spindle to table 90-490mmdistance spindle to column 0-400mmtable dimensions 1370x320mmcross table travel (x-axis) 990mmcross table travel (y-axis) 300mmcross table travel (z-axis) 400mmfeeding range of longitudinal cross table 22-555 mm/minmilling head tilt +/- 45 degreest-slots (5) width 14mmmax. weight workpiece 300kgmotor power x-axis feed 750Wmain motor power S1 (100%)/S6 2,2kW (V), 3,3kW 2,2kW (H), 3,3kWmachine dimensions 1700x1500x2270mmpackaging dimensions 1680x1600x2300mmweight (net/gross) 1750 / 2000kg3 axis DRO included in deliveryautomatic feeding of X-axisheavy duty cast iron setup of the whole machinegear driven horizontal and vertical spindleeasy and quick transformation between vertical and horizontal operationpermanent oil bath lubricated gear with ground and hardened gear wheelsvertical spindle with powerful 2-step motorcooling system and halogen lamp includedCW and CCW run as well as ISO 40 adapter as standardswallowtail guides adjustable via V-ledgesolid and precise cross table (14mm T-nuts)positioning motor for Z-axis strokeincluded in delivery: Keyless Drill Chuck B18/1-16MM, Milling Chuck Set with collet (4,5,6,8,10,12,14,16mm), Machine Vice 160mm, Reduction Sleeve ISO40/MT3, ISO40/MT2, Drill Arbors ISO40-B18, Horizontal Milling Arbor 22, 27mm, Coolant System, Halogen Work Lamp, Oil Pan, lubrication System
