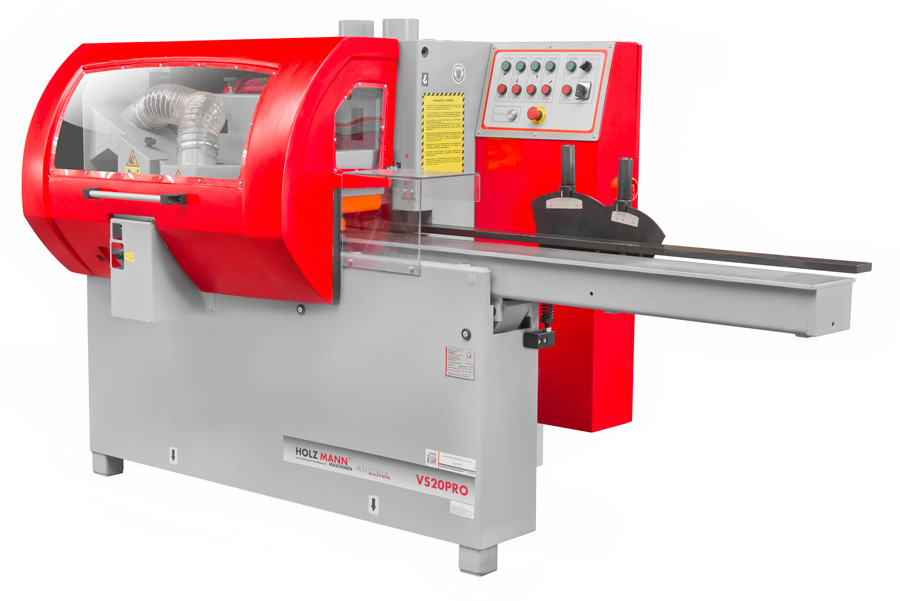

Holzmann four side planer VS20PRO

HOLZMANN
Preview: VS20PRO Preview: VS20PRO Preview: VS20PRO Preview: VS20PRO
VS20PRO
VS20PRO
VS20PRO
VS20PRO

€14,399.00 * €15,999.00 * (10% Saved)

Prices incl. VAT plus shipping costs

Delivery time 10 Workdays

  • Order number: VS20PRO
Description Evaluations 0
Description
    motor data motor power S1 in W 16100 voltage 400V / 3 / 50Hz... more
Close menu
Product information "Holzmann four side planer VS20PRO"


motor data
  • motor power S1 in W 16100
  • voltage 400V / 3 / 50Hz

weight
  • gross weight in kg 1.020
  • net weight in kg 1.000

measeurements:

  •   max. output workpiece width 180 mm
  •   min. output workpiece width 25 mm
  •   max. output workpiece thickness 105 mm
  •   min. output workpiece thickness 10 mm
  •   min. length of workpiece
  •   -  at single feeding 350mm
  •   - at group feeding 250mm
  •   number of working spindles 4
  •   spindle speed 6000 min-1
  •   spindle diameter 40 mm
  •   diameter of cutter head 120 mm
  •   length of horizontal spindle 190 mm
  •   length of vertikal spindle 120 mm
  •   speed of feeding 6; 12 m/min
  •   diameter of feeding rolls 120 mm
  •   length of feeding table 1700 mm
  •   distance between feeding table and ground 920 mm
  •   fast setting of feeting table and lineal 10 mm

packaging
  • packaging height in mm 1.550
  • packaging width in mm 2.800
  • packaging length in mm 1.200


general data
  • EAN Code 9120058372919



  • European quality
  • solid, heavy and low vibration setup
  • steel cast iron construction

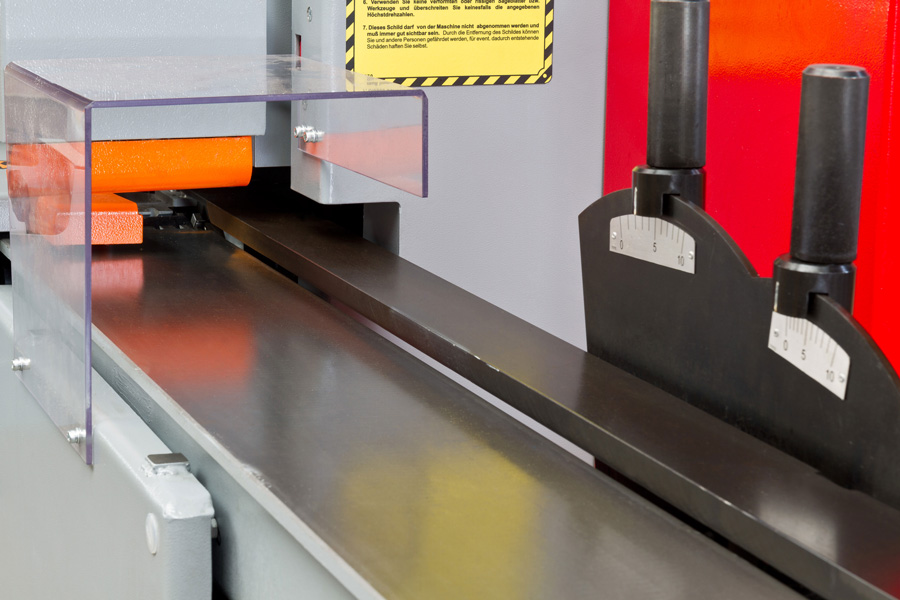

  • very long table ensures save feeding of the workpiece

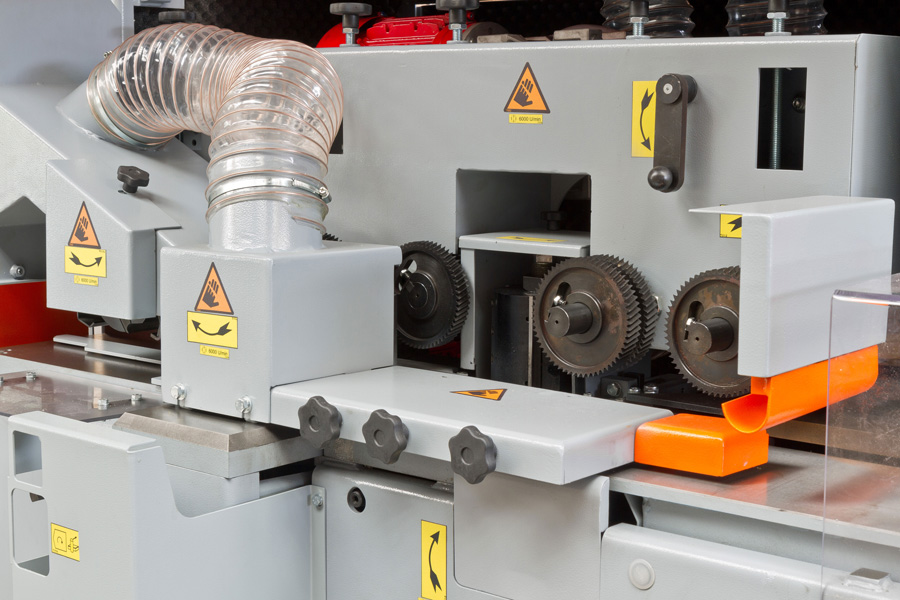

  • precise and smooth run of the workpiece by feed roller
  • before dressing spindle
  • spindle position adjustable via mechanical display
  • Pressure on every feeding roller steplessly adjustable

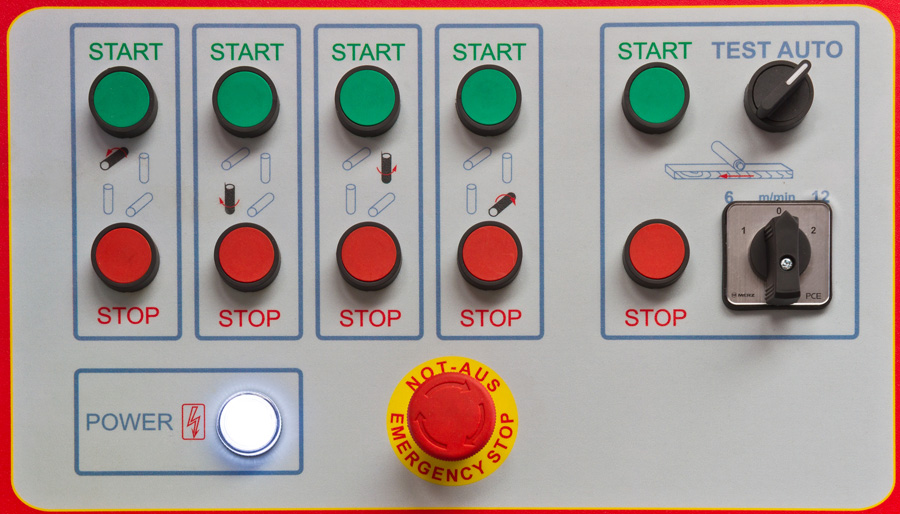

  • clearly arranged control elements
  • with 4 massive planer heads
  • Powerful with 4 engines!
