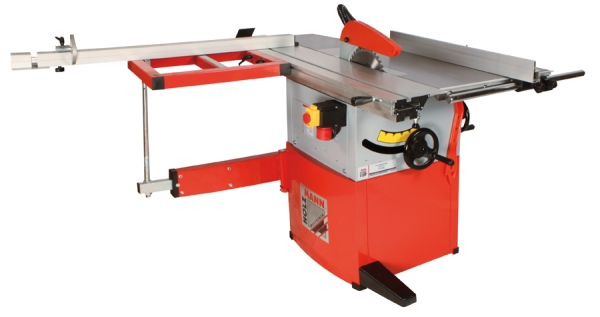

Holzmann panel saw TS 250FL
- Order number: TS250FL_230V
- Open text field 1: 9120039903477
- Open text field 2: 164
motor data motor power s1 in W 1500 motor power s6 in W 2200... more
Product information "Holzmann panel saw TS 250FL"
motor data
- motor power s1 in W 1500
- motor power s6 in W 2200
- voltage 230V or 400V
measurements
- sliding table in mm 1320x238
- suction port in mm 100
- table widening in mm 250
- table height in mm 850
- table size in mm 800x350
- total dimensions in mm 1320-2580x2100x3140
cutting performance
- max. cutting width at parallel fence in mm 600
- max. cutting height 45° in mm 59
- max. cutting height 90° in mm 80
circular saws
- sawblade in mm 250
- sawblade speed in min-1 4000
weight
- gross weight in kg 162.50
- net weight in kg 153.50
packaging
- packaging length in mm 860
- packaging width in mm 640
- packaging height in mm 580
general data
- EAN code 9120039903460
- entry-level model with good price-performance ratio
- very stable grey cast iron table with extension table
- user-friendly, smooth and precise blade height and angle adjustment via handwheel
- saw blade can be tilted up to 45°
- paralell fence with micro adjustment
Included in delivery: T.C.T saw blade 254mm, blade guarde with dust collector plug, work piece stop at sliding table, table extensions, sliding table, telescopic fence, tilt stop, rip fence, push stick
