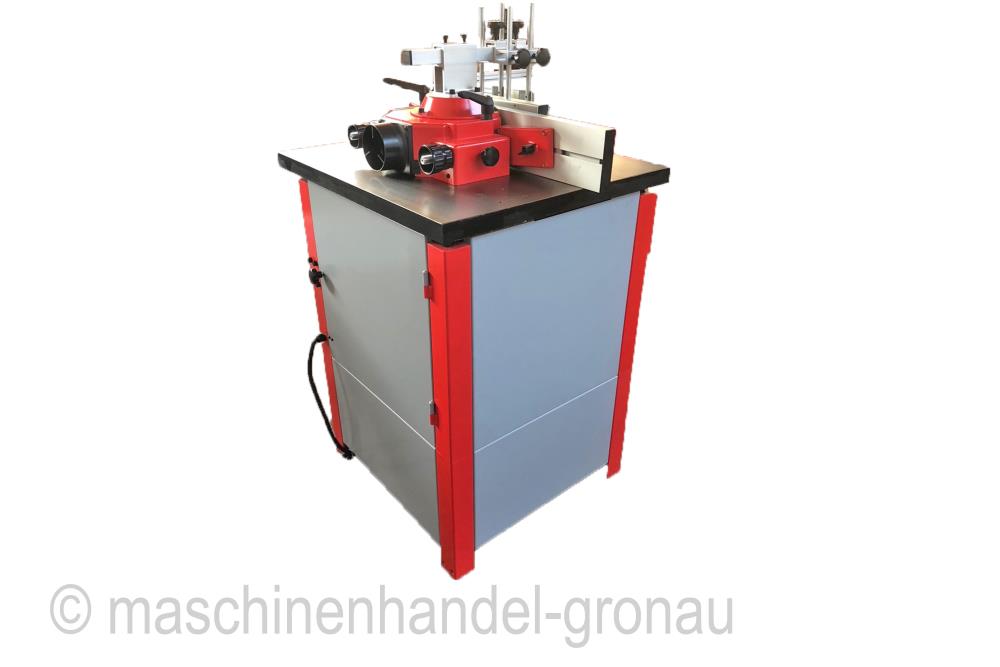

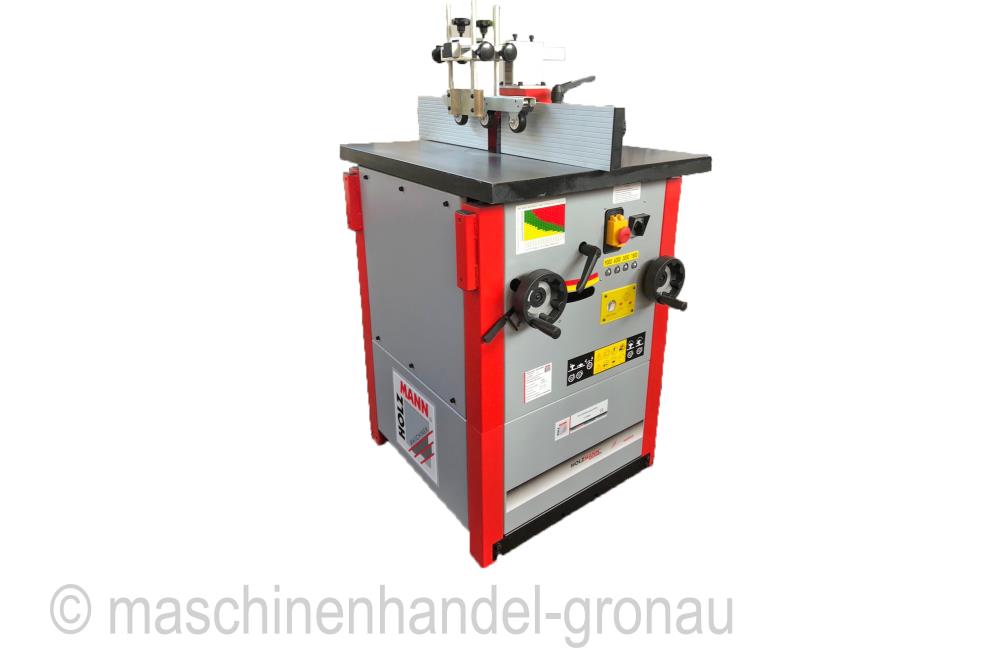

Holzmann spindle shaper FS 200S
€1,799.00 * €1,999.00 * (10.01% Saved)
Prices incl. VAT plus shipping costs
Ready to ship today,
Delivery time appr. 3-5 workdays
- Order number: FS200S_230V
motor data motor power s1 in W 2800 motor power s6 in W 3750... more
Product information "Holzmann spindle shaper FS 200S"
motor data
- motor power s1 in W 2800
- motor power s6 in W 3750
- voltage 230V or 400V
measurements
- suction port in mm 100
- table height in mm 900
- table size in mm 710x640
milling and drilling
- max. tool diameter below table in mm 190
- milling spindle swivel -5° +30°
- max. clamping height in mm 105
- spindle stroke in mm 100
- milling spindle speed in min-11800/3000/6000/9000
- milling spindle diameter in mm 30
- table opening in mm 200
- mitre fence in mm 360x120
- max. tool diameter above table 190
weight
- gross weight in kg 191
- net weight in kg 170
packaging
- packaging length in mm 760
- packaging width in mm 690
- packaging height in mm 700
general data
- EAN code 9120039905242
- tiltable spindle from -5° - +30°
- solid and torsion-resistant grey cast iron table

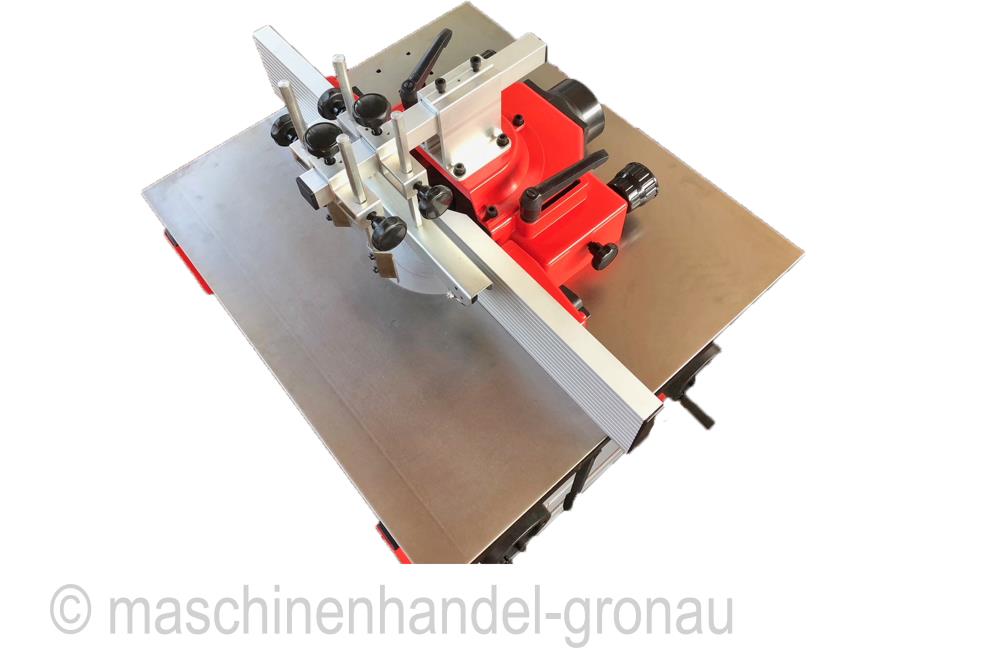

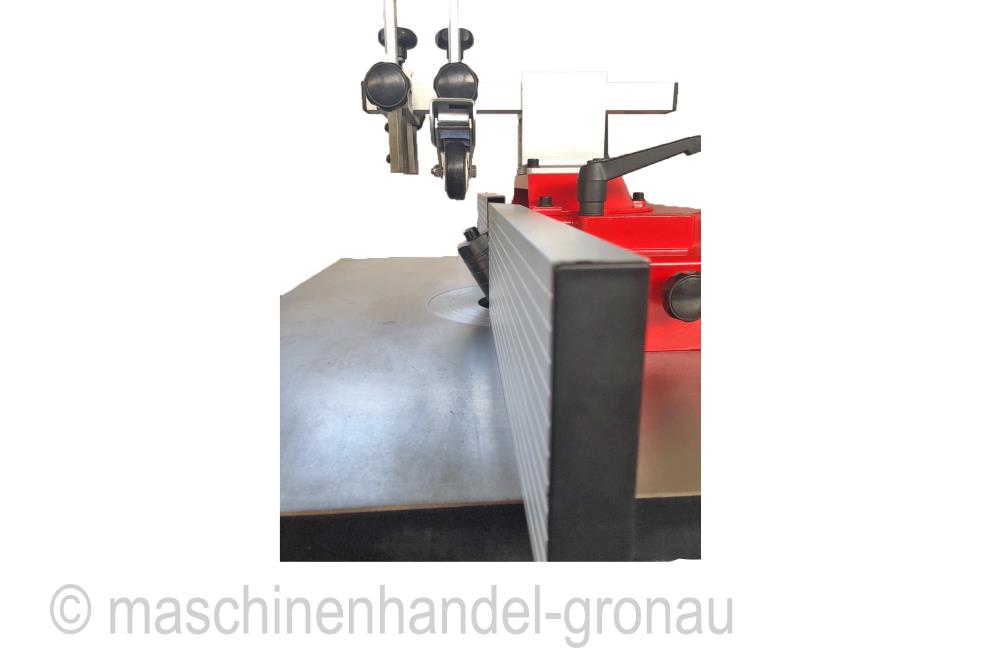

- high quality shaper hood with aluminium fences featuring indepent micro adjustment
- 4 different spindle speeds as standard
- max. tool diameter 200mm
- electronical speed indication via LED’s
- handy spindle adjustment wheels
- sliding table optional and retrofitable
- sanding roller included in delivery
included in delivery: sanding tool, spindle shaper hood, mitre fence, down holder system
