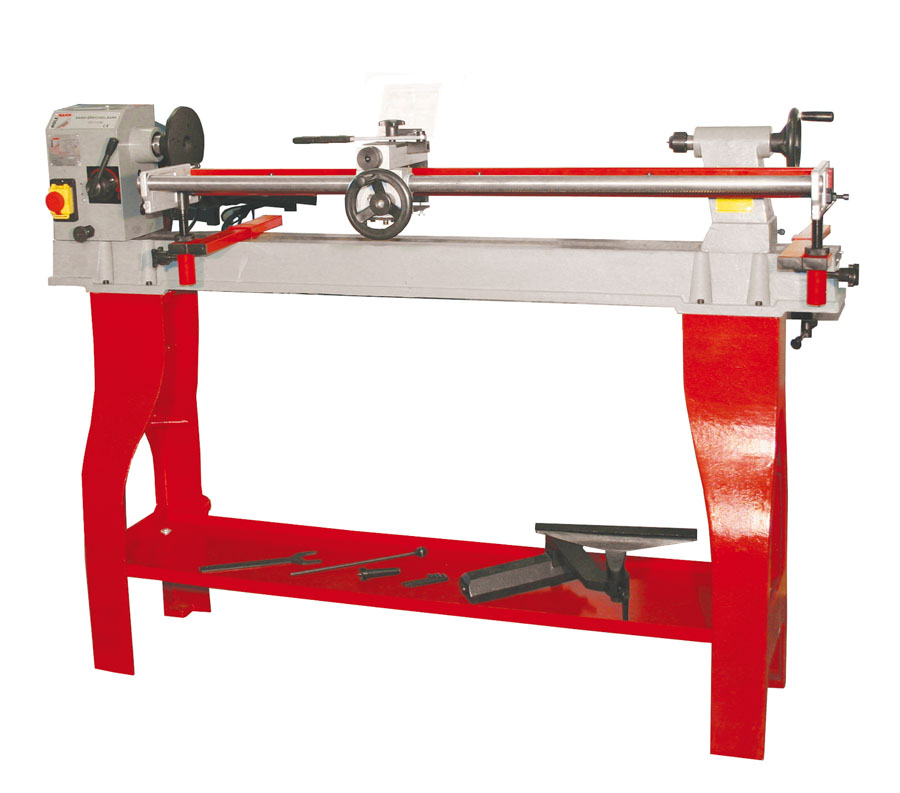

Holzmann wood turning lathe VD1100N
€989.00 * €1,099.00 * (10.01% Saved)
Prices incl. VAT plus shipping costs
Ready to ship today,
Delivery time appr. 3-5 workdays
- Order number: VD1100N_400V
motor data voltage 230V or 400V motor power s1 in W 750 motor power s6... more
Product information "Holzmann wood turning lathe VD1100N"
motor data
- voltage 230V or 400V
- motor power s1 in W 750
- motor power s6 in W 1100
measurements
- table height in mm 900
turning machines
- tailstock sleeve travel 60
- copying center height in mm 80
- lathe spindle speed in min-1 500-2000
- tailstock cone MK2/MT2
- center height in mm 185
- distance between centers in mm 1100
- head stock spindle M33 DIN800
- spindle bore in mm 12
weight
- gross weight in kg 149
- net weight in kg 119
packaging
- packaging length in mm 1.620
- packaging width in mm 340
- packaging height in mm 430
general data
- EAN code 9120039900575 (400V)
- EAN Code 9120039902920 (230V)
- grey cast iron machine bed, stand, tail stock and head stock

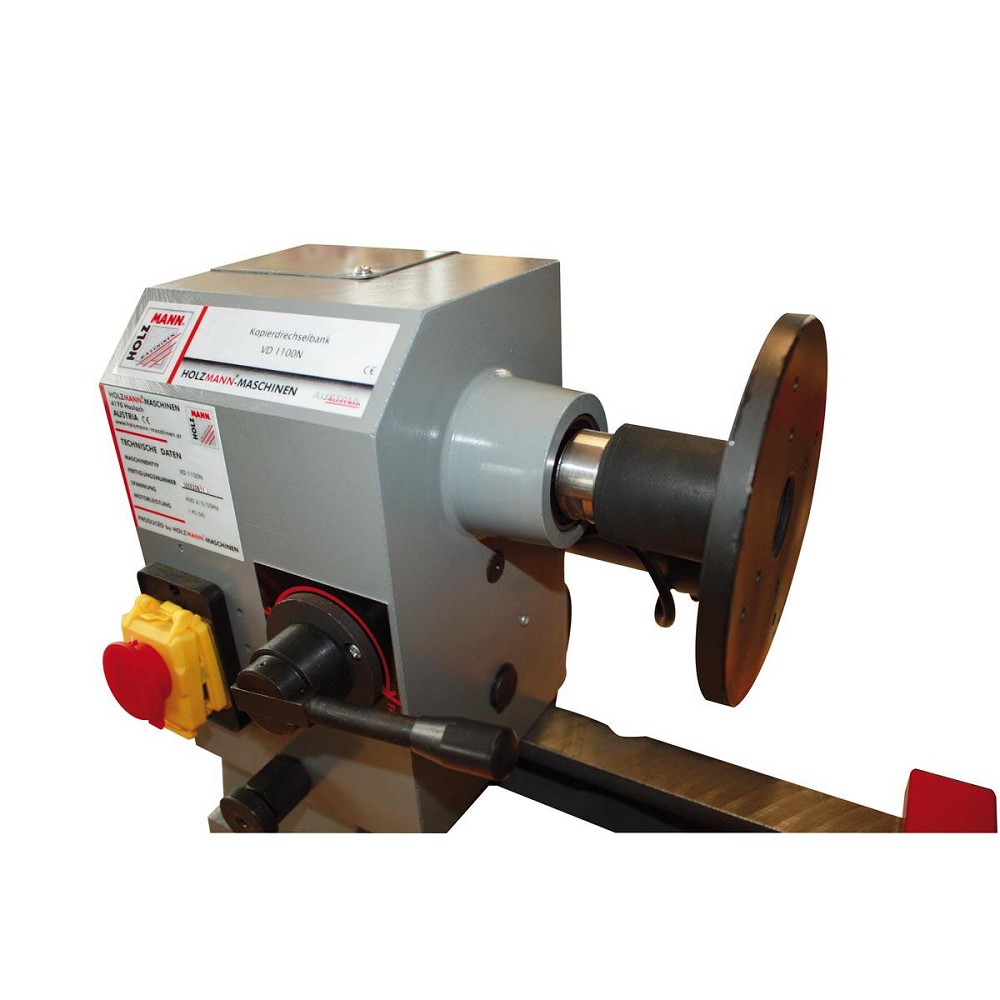

- head stock can be turned

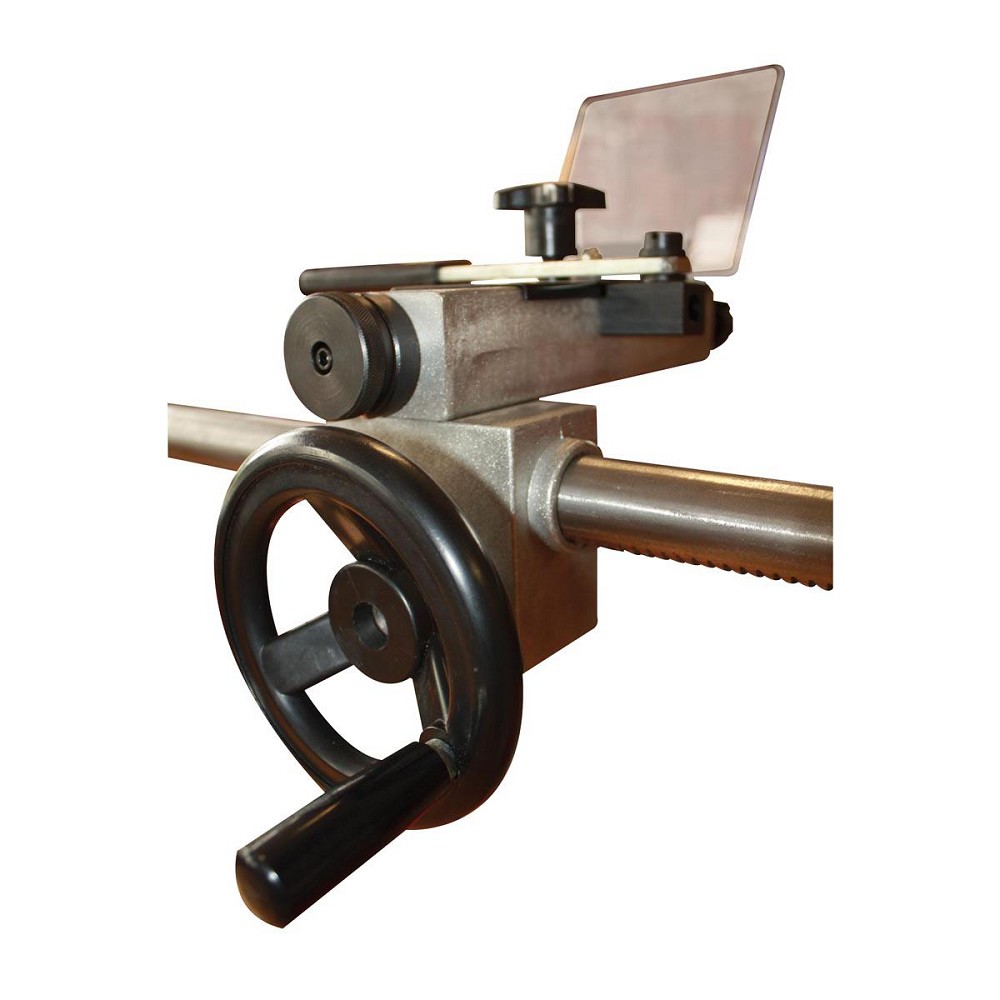

- copying device options: from master work piece or pattern
- max. copying length 1000mm
- tail stock 90° pivotable for big turning diameters

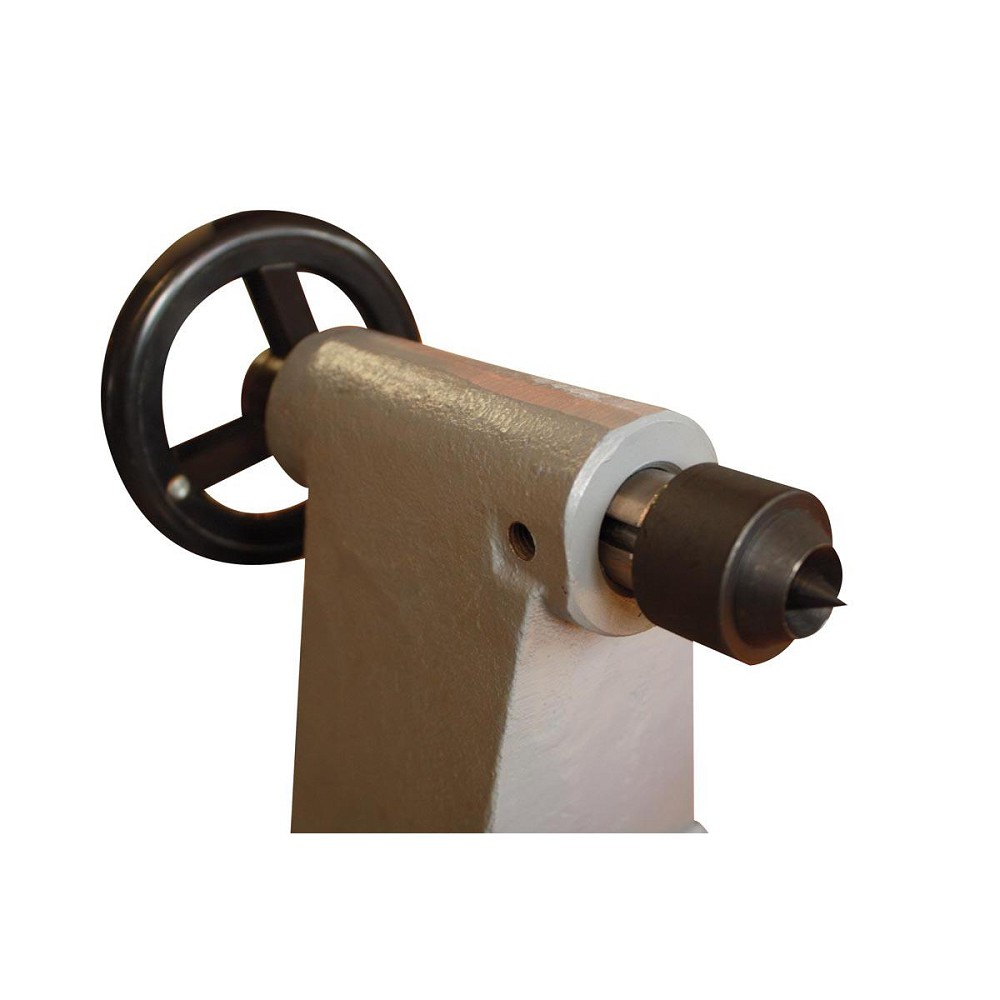

- MT2 tail stock
- quick adjustment for tail stock and head stock
- large face plate
included in delivery: stand, 4-side grab chuck, ball-bearing life centre, faceplate, several tools, copy attachment, tool rest
