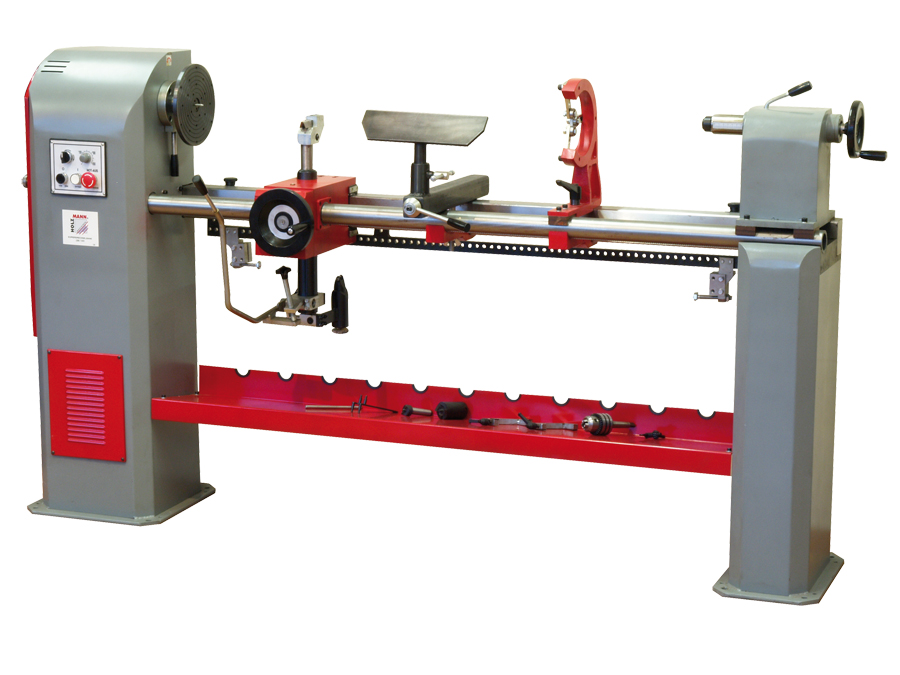

Holzmann wood turning lathe DBK1300F

€2,159.00 * €2,399.00 * (10% Saved)

Prices incl. VAT plus shipping costs

Delivery time 10 Workdays

Spannung:

  • DBK1300F_400V
  motor data motor power s1 in W 1100 motor power s6 in W 1500 voltage... more
Product information "Holzmann wood turning lathe DBK1300F"

motor data
  • motor power s1 in W 1100
  • motor power s6 in W 1500
  • voltage 400V
turning machines
  • distance between centers in mm 1300
  • tailstock sleeve travel 100

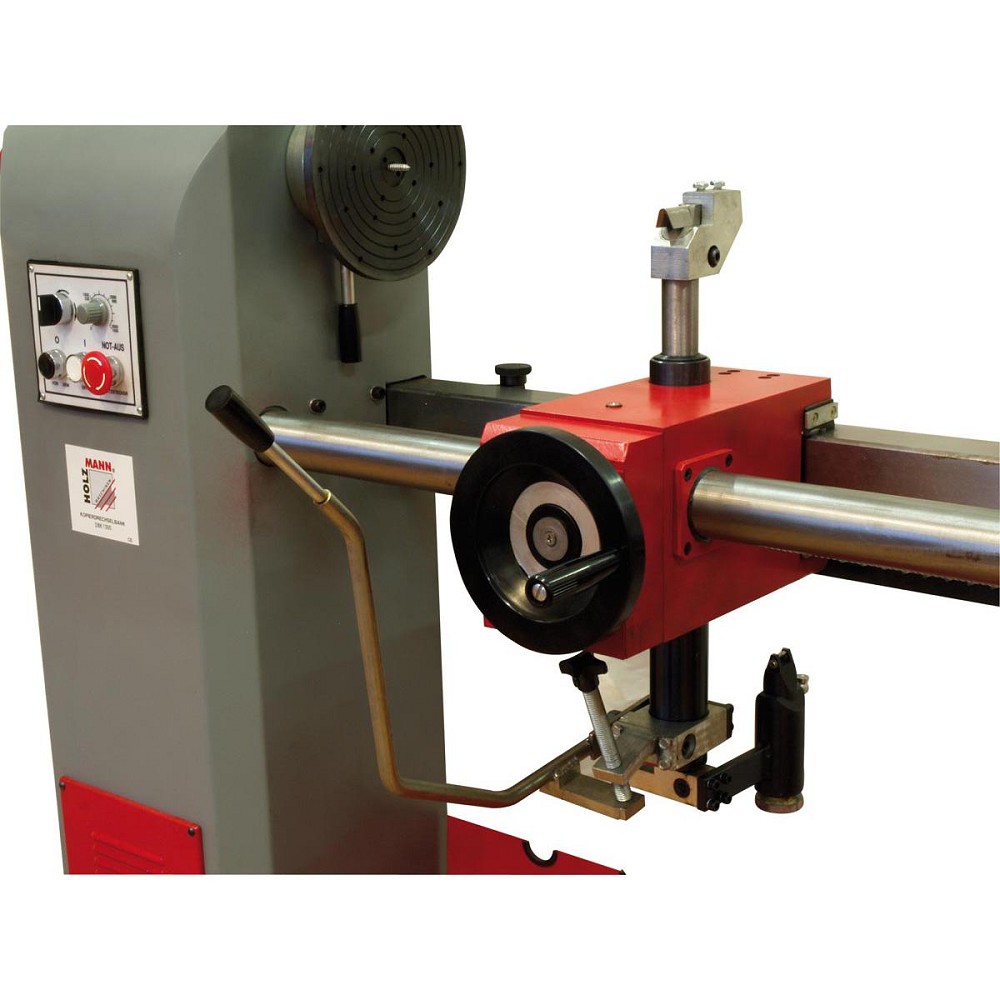

  • copying center height in mm 65
  • max. copy depth in mm 50
  • max. copy length in mm 1100
  • lathe spindle speed in min-1 0-3000
  • tailstock cone MK2/MT2
  • head stock spindle M33
  • center height in mm 220
weight
  • gross weight in kg 228
  • net weight in kg 202
packaging
  • packaging length in mm 2.120
  • packaging width in mm 490
  • packaging height in mm 1.230
general data
  • EAN code 9120039902012



  • solid and torsion-resistant steel build-up
  • easy one hand operation with eccentric clamp system
  • solid tail stock with double guide system
  • tailstock with M33 and MT2
  • long tool rest with quick clamp system and stepless height adjustment
  • various accessories included in delivery

included in delivery: face plate 220mm, screw chuck, grab chuck 40mm, drill chuck 3-16mm, arbor B16-MT2, life centre MT2, tool rest, steady rest, copying device
